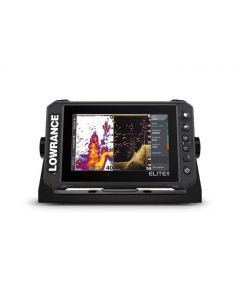

Lowrance Elite FS 7 No Transducer

Model: 000-15703-001

• ActiveTarget Live sonar and Active Imaging compatible: Live Sonar: Supports sonar accessories such as ActiveTarget™ and Active Imaging™ 3-in-1 Sonar
• Full networking capability: Multiple Displays: Share sonar, charting, waypoints, and other user data between displays
• High Resolution Multi-touch screen
• Preloaded with C-MAP Contour + charts (AMER,APAC)
• NMEA 2000®: Support and control NMEA 2000® devices
• Halo Radar: Drive Lowrance radar domes directly
• Total Control: Full touchscreen control of Power Pole® anchors and Ghost® Trolling Motor

The new Elite™ Fishing System (FS) gives you access to the full line-up of Lowrance fishfinding tools — including ActiveTarget™ live sonar, Active Imaging™, FishReveal™ and preloaded C-MAP® Contour™ + charts

Specifications

Environmental
Operating temperature range	-15°C to +55°C (5°F to 131°F)
Storage temperature	-20°C to +60°C (4°F to 140°F)
Waterproof rating	IPX6 and IPX7
Electrical
Supply voltage	12 V DC (10 - 17 V DC min - max)
Recommended fuse rating	3 A
Power consumption (maximum)	28 W (2 A at 13.8 V DC)
Display
Resolution	800 x 480 pixels
Viewing angles in degrees	50° top, 60° bottom, 70° left and right
Brightness	> 1200 nits
Touch screen	Multitouch
Physical
Weight (display only)	0.9 kg (1.9 lbs.)
Compass Safe Distance	0.5 m (1.6 ft.)
Interface/Connectivity
NMEA 2000®	1 port (Micro-C connector)
Data card reader	1x slot (microSD, SDXC)
Ethernet	1 port, (5-pin Ethernet connector, 100Base-T)
Sonar	1 port (9-pin connector)
WiFI Internal	802.11b/g/n : No wireless networking between units
Bluetooth®	4.0 with support for Bluetooth® Classic
GPS	10Hz high speed update WAAS, MSAS, EGNOS, GLONASS

What's in the Box:

• Elite FS 7 Display
• Suncover
• Mounting bracket and knobs
• Power cable
• Fuse and Fuse holder
