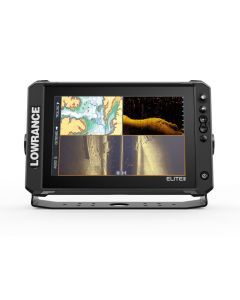

Lowrance Elite FS 10 No Transducer

Lowrance Elite™ FS 10 with No Transducer (US/CAN)

Model: 000-16429-001

• ActiveTarget™ 2 Live Sonar ready
• Active Imaging 3-in-1 ready
• Active Imaging HD 3-in-1 ready with a S3100 Sonar Module
• FishReveal™
• Preloaded C-MAP Discover Onboard with 1-foot contours 19,000 lakes across the U.S. and more than 9,400 in Canada, plus mapping options including C-MAP, Navionics® and more

The Elite™ Fishing System (FS) gives you access to the full line-up of Lowrance fishfinding tools — including ActiveTarget™ 2 live sonar, Active Imaging™ and Active Imaging™ HD* and preloaded C-MAP® Discover Onboard charts — to help you make the most of your time on the water. *Active Imaging HD requires S3100 Module

The Elite Fishing System (FS) combines the power of Lowrance’s proven and newest fishfinding tools with a more affordable display that’s easier to use and install. From integrated support for ActiveTarget™ 2 live sonar and extreme high-resolution Active Imaging™ and Active Imaging HD* with Lowrance CHIRP sonar, SideScan and DownScan Imaging™ with FishReveal™ to preloaded C-MAP® Discover Onboard Fishing Maps, Elite FS gives you all the tools you need to find and catch more fish.

Fish smarter when you know exactly what fish are doing — in real time — with ActiveTarget™ 2 Live Sonar. Enjoy high-resolution views of fish movements, tracking them as they swim in and around cover. Watch their real-time response to your lure and you will know if your current technique is working or if it’s time to switch things up. Note: No splitscreen options in 10 & 12 Models

See structure and cover with a new level of refined detail and at a range unmatched by any other structure imaging technology with Active Imaging™ and Active Imaging™ HD* 3-in-1 sonar featuring CHIRP, SideScan and DownScan Imaging™ with FishReveal™. Get the best of CHIRP sonar and DownScan Imaging on one screen with FishReveal, a Lowrance exclusive that helps you easily recognize fish from structure and cover on high-detailed DownScan images.

Spend more time trying to catch fish and less time trying to find them with the high-resolution detail of C-MAP Discover Onboard inland and coastal charts built into Elite FS displays. From finding key fishing areas, like ledges, drop-offs and ditches to navigating with precision to fish-holding areas, you will have more success on the water with high-resolution 1-foot contours on 19,000 lakes across the U.S. and more than 9,400 in Canada. *Active Imaging HD requires S3100 Module

Specifications

DISPLAY
Resolution	1280X800
Viewing angle in degrees	80° top/bottom, 80° left/right
Brightness	> 1200 nits
Touch screen	Multi-touch
PHYSICAL
Weight	3.66lb (1.66kg)
Compass Safe Distance	2.1 ft (65 cm)
ENVIRONMENTAL
Operating temperatature range	-15°C to +55°C (5°F to 131°F)
Storage Temperature	-20°C to +60°C (4°F to 140°F)
Waterproof Rating	IPX6 and IPX7
ELECTRICAL
Supply Voltage	12 V DC (10 - 17 V DC min - max)
Recommended Fuse Rating	3 Amps
Power Consumption Maximum	34.5 W (2.5 A at 13.8 V DC)
INTERFACE/CONNECTIVITY
NMEA 2000	1 port (Micro-C connector)
Data Card Reader	1x slot (microSD, SDXC)
Ethernet	1 port, (5-pin Ethernet connector, 100Base-T)
Sonar	1 port (9-pin connector)
WiFI Internal	802.11b/g/n : No wireless networking between units
Bluetooth	4.0 with support for Bluetooth® Classic
GPS	10Hz high speed update WAAS, MSAS, EGNOS, GLONASS

What's in the Box:

• Elite FS 10 Display
• Corner Clip ELITE-7, 9, 10, and 12 FS
• Elite™ FS 10 Suncover
• HDS-10 PRO / Elite FS-10 Bracket
• Lowrance Power Cable
• Fuse and Fuse Holder
