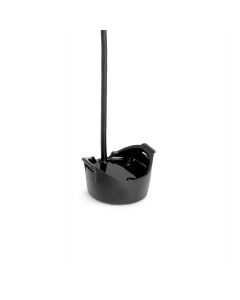

Humminbird XP-14-HW Puck Transducer

Humminbird XP-14-HW Puck

Model: 710286-1

• This accessory is compatible with the following Humminbird products: SOLIX 10, 12, 15 — All G2 Models.
• Side Imaging™ and Down Imaging™ units can support the XP 14 HW as a sonar only transducer. This transducer does not support Side Imaging or Down Imaging.
• Dual Spectrum CHIRP Frequencies: Full: 150-220 kHz, Narrow: 180-240 kHz, Wide: 140-200 kHz
• Dual Spectrum CHIRP Max Depth: 1200ft (365m)

In-Hull Dual Spectrum CHIRP Transducer supports Dual Spectrum CHIRP 2D Sonar with high frequency beam and wide cone angle, offering CHIRP range of 150-220kHz and max depth of 1200ft. Intended for glue-in installation inside single layer fiberglass hulls. Includes epoxy kit and 20’ cable.

Specifications
