Circuit Breaker Block

Name: Blue Sea St Clb Push Button Circuit Breaker Block
SKU: 661-5054
Price: 144.29 USD
Availability: InStock

$144.29

In stock: 1 available

Product Details

UPC: 632085050542

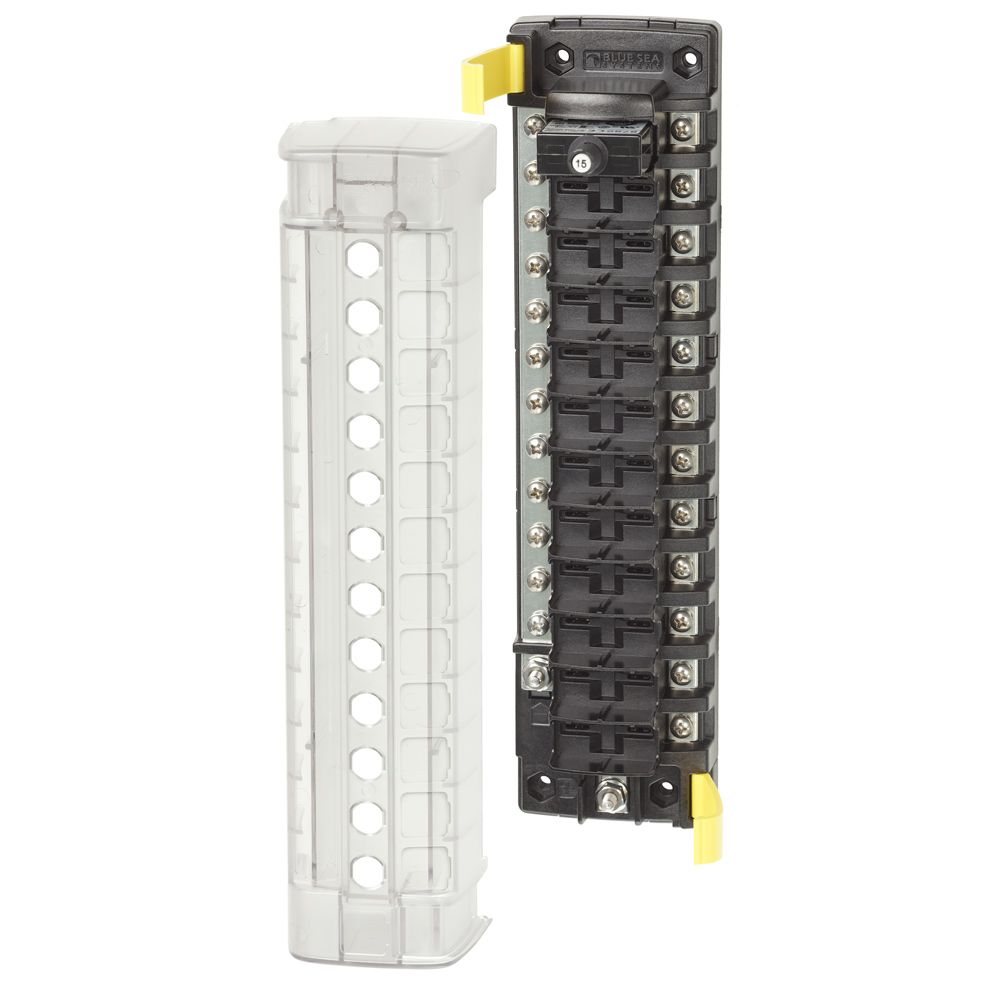

Blue Sea St Clb Push Button Circuit Breaker Block

Quick connect clips allow circuit breakers to snap easily into place

Tin-plated copper busses and screw terminals
Clear insulating cover with square format label recesses, satisfies ABYC/USCG insulation requirements
Easy to open cover clip
Two breakouts for wire access
Accepts ring terminals
Optional push button waterproof boots or dress nuts can be installed over cover
Voltage Max 32V DC
Amperage Max 32A (per circuit)
Amperage Max 100A (per block-common source)
Amperage Max 40A (per jumped circuit group-independent source)
